Faculty of Engineering
Department of Mechatronics and Robotics
26MRB4501 Electric Circuits
Semester 1, 2026/2027

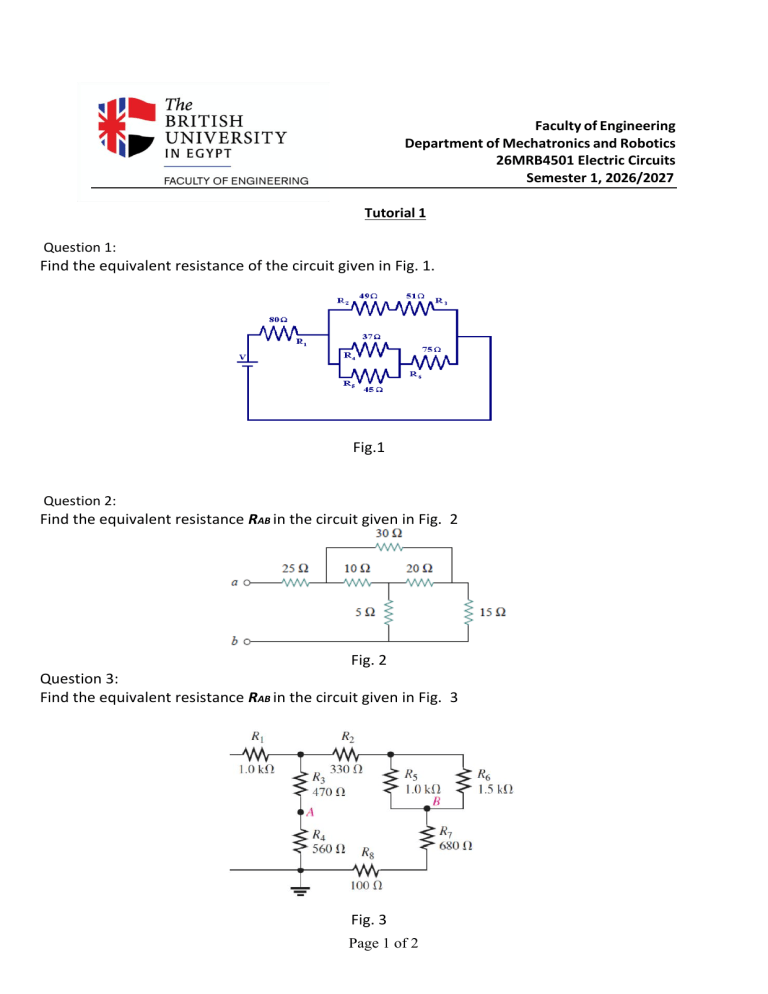

Tutorial 1
Question 1:
Find the equivalent resistance of the circuit given in Fig. 1.
Fig.1
Question 2:
Find the equivalent resistance RAB in the circuit given in Fig. 2
Fig. 2
Question 3:
Find the equivalent resistance RAB in the circuit given in Fig. 3
Fig. 3
Page 1 of 2
Question 4:
Find the equivalent resistance Rab, for each of the circuits in Fig. 4
Fig. 4
Question 5:
Find the equivalent resistance Rab, for each of the circuits in Fig. 5
Fig. 5
Question 6:
If Req = 50 Ω in the circuit in Fig. 6, find R.
Fig. 6
END OF TUTORIAL PROBLEMS
Page 2 of 2
