Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form

7,60,5

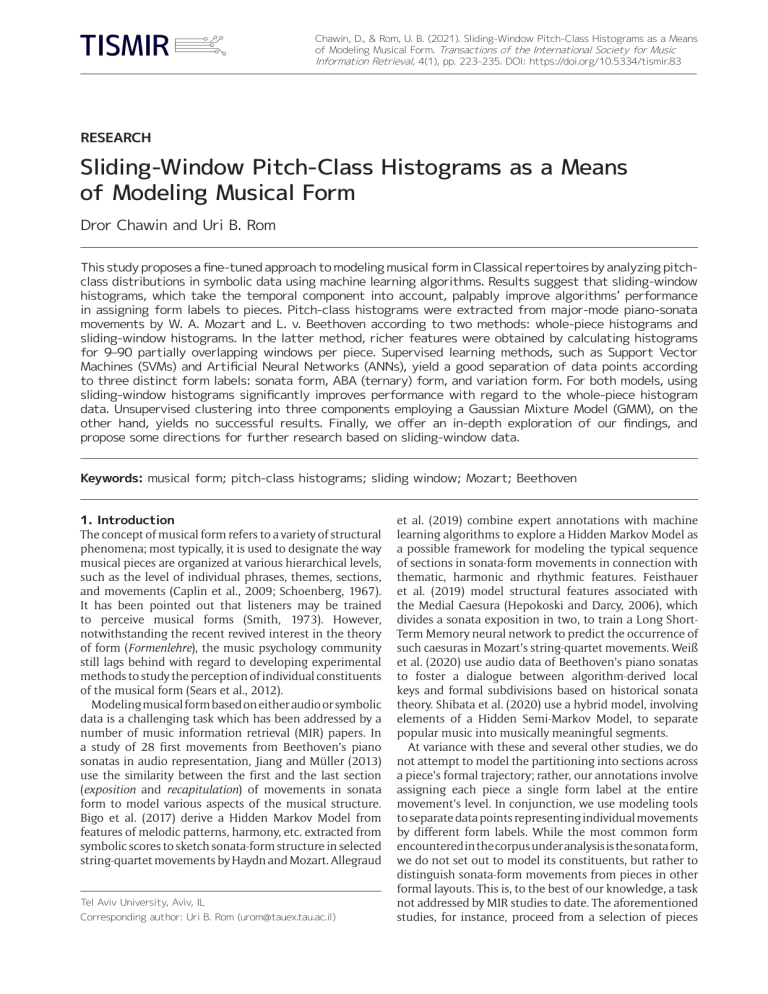

Chawin, D., & Rom, U. B. (2021). Sliding-Window Pitch-Class Histograms as a Means
of Modeling Musical Form. Transactions of the International Society for Music
Information Retrieval, 4(1), pp. 223–235. DOI: https://doi.org/10.5334/tismir.83
RESEARCH
Sliding-Window Pitch-Class Histograms as a Means
of Modeling Musical Form
Dror Chawin and Uri B. Rom
This study proposes a fine-tuned approach to modeling musical form in Classical repertoires by analyzing pitchclass distributions in symbolic data using machine learning algorithms. Results suggest that sliding-window
histograms, which take the temporal component into account, palpably improve algorithms’ performance
in assigning form labels to pieces. Pitch-class histograms were extracted from major-mode piano-sonata
movements by W. A. Mozart and L. v. Beethoven according to two methods: whole-piece histograms and
sliding-window histograms. In the latter method, richer features were obtained by calculating histograms
for 9–90 partially overlapping windows per piece. Supervised learning methods, such as Support Vector
Machines (SVMs) and Artificial Neural Networks (ANNs), yield a good separation of data points according
to three distinct form labels: sonata form, ABA (ternary) form, and variation form. For both models, using
sliding-window histograms significantly improves performance with regard to the whole-piece histogram
data. Unsupervised clustering into three components employing a Gaussian Mixture Model (GMM), on the
other hand, yields no successful results. Finally, we offer an in-depth exploration of our findings, and
propose some directions for further research based on sliding-window data.
Keywords: musical form; pitch-class histograms; sliding window; Mozart; Beethoven
1. Introduction
The concept of musical form refers to a variety of structural
phenomena; most typically, it is used to designate the way
musical pieces are organized at various hierarchical levels,
such as the level of individual phrases, themes, sections,
and movements (Caplin et al., 2009; Schoenberg, 1967).
It has been pointed out that listeners may be trained
to perceive musical forms (Smith, 1973). However,
notwithstanding the recent revived interest in the theory
of form (Formenlehre), the music psychology community
still lags behind with regard to developing experimental
methods to study the perception of individual constituents
of the musical form (Sears et al., 2012).
Modeling musical form based on either audio or symbolic
data is a challenging task which has been addressed by a
number of music information retrieval (MIR) papers. In
a study of 28 first movements from Beethoven’s piano
sonatas in audio representation, Jiang and Müller (2013)
use the similarity between the first and the last section
(exposition and recapitulation) of movements in sonata
form to model various aspects of the musical structure.
Bigo et al. (2017) derive a Hidden Markov Model from
features of melodic patterns, harmony, etc. extracted from
symbolic scores to sketch sonata-form structure in selected
string-quartet movements by Haydn and Mozart. Allegraud
Tel Aviv University, Aviv, IL
Corresponding author: Uri B. Rom ([email protected])
et al. (2019) combine expert annotations with machine
learning algorithms to explore a Hidden Markov Model as
a possible framework for modeling the typical sequence
of sections in sonata-form movements in connection with
thematic, harmonic and rhythmic features. Feisthauer
et al. (2019) model structural features associated with
the Medial Caesura (Hepokoski and Darcy, 2006), which
divides a sonata exposition in two, to train a Long ShortTerm Memory neural network to predict the occurrence of
such caesuras in Mozart’s string-quartet movements. Weiß
et al. (2020) use audio data of Beethoven’s piano sonatas
to foster a dialogue between algorithm-derived local
keys and formal subdivisions based on historical sonata
theory. Shibata et al. (2020) use a hybrid model, involving
elements of a Hidden Semi-Markov Model, to separate
popular music into musically meaningful segments.
At variance with these and several other studies, we do
not attempt to model the partitioning into sections across
a piece’s formal trajectory; rather, our annotations involve
assigning each piece a single form label at the entire
movement’s level. In conjunction, we use modeling tools
to separate data points representing individual movements
by different form labels. While the most common form
encountered in the corpus under analysis is the sonata form,
we do not set out to model its constituents, but rather to
distinguish sonata-form movements from pieces in other
formal layouts. This is, to the best of our knowledge, a task
not addressed by MIR studies to date. The aforementioned
studies, for instance, proceed from a selection of pieces
224
Chawin and Rom: Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form
that adhere to a common underlying formal category, and
consequently do not address the question of separation by
form. We ultimately contemplate a possible prospective
integration of our classification method as a first step in a
projected MIR workflow, which would start by separating
a given corpus of musical pieces according to form labels,
subsequently subjecting each piece to formal analysis
according to its form label as assigned in the first stage.
To be sure, questions of genre and style classification
have been addressed by a considerable number of MIR
papers (with relation to both symbolic and audio data),
such as, for instance, Fucks (1962); Jiang et al. (2002);
Lidy and Rauber (2005); Lidy et al. (2007); Panagakis et al.
(2008); Shan and Kuo (2003); Tzanetakis et al. (2003);
Tzanetakis and Cook (2002). However, our endeavor to
separate pieces on form labels differs essentially from the
tasks addressed in these previous studies.
In the present study, we investigate the viability of
configuring an algorithm to assign form labels to pieces
of the Classical repertoire. Our main working assumption
is that the choice of musical form—particularly in the
Classical repertoire—is closely related to the succession
of local keys across a piece (see Section 2), and that local
keys, in turn, are detectable through an analysis of the
distribution of pitch classes across a whole piece or a
segment thereof, as explained below.
As a main tool to model musical form, we apply pitchclass histograms extracted from symbolic representations
of the works under investigation. Pitch-class distributions
represent a broadly acknowledged and employed MIR
technique, which has been successfully applied to both
symbolic data and audio signals to accomplish a variety
of MIR tasks, including modeling a piece’s style period
(Fucks, 1962), automatic genre classification (Tzanetakis et
al., 2003), key detection (Zhu and Kankanhalli, 2006), local
key determination from audio data (Weiß et al., 2020),
makam and rāga classification (Gedik and Bozkurt, 2010;
Koduri et al., 2012), etc. As has been demonstrated in a
number of studies on key profiles and key finding, music
in a given key is characterized by a typical distribution of
pitch classes, making key assignment possible on the basis
of comparing actual pitch distributions with an empirically
generated ideal distribution for a given major or minor
key (key profile). The Krumhansl-Schmuckler key-finding
algorithm, which was based on key profiles derived from
experiments by Krumhansl and Kessler, in which subjects
were asked to rate tonal fit (Krumhansl, 1990; Krumhansl
and Kessler, 1982), has been improved upon in several
subsequent studies to achieve greater accuracy (Albrecht
and Shanahan, 2013; Shmulevich and Yli-Harja, 2000;
Temperley, 1999), recent advances also deriving local keys
directly from audio data (Schreiber et al., 2020).
While whole-piece histograms, that is, histograms
that represent the distribution of pitch classes across an
entire movement, retain at least some aspects of a piece’s
tonal trajectory, note that one thing they do not reflect
is the sequence or order of keys visited throughout a
piece. One may proceed from the assumption that the
temporal aspect may be better captured by using a set
of histograms extracted from contiguous segments of
a given piece and arrayed by their temporal order. This
technique, referred to as “sliding-window pitch-class
histograms,” has been applied in prior research work
to detect local key changes (e.g., modulations) in the
course of a piece (Shmulevich and Yli-Harja, 2000). The
triangular “keyscapes,” conceptualized by Sapp (2001,
2005, 2011), and embraced by additional researchers
(Lieck and Rohrmeier, 2020), represent multi-timescale
visualizations used to simultaneously display local key
estimations at various hierarchical levels. Finally, as shown
by Quinn (2010), one may achieve excellent results on key
detection also without relying on the customary analysis
of pitch-class profiles, and with the window size drastically
reduced, by defining the window to include merely a pair
of adjacent sonorities that adhere to certain criteria.
Are pitch-class histograms also useful for effectively
detecting musical form? Obviously, analysis by pitch-class
distribution involves complexity reduction to a degree that
does not allow to capture, for instance, the occurrences of
particular motives, local harmonic progressions, etc. What
pitch-class histograms generally retain is information
about a piece’s tonal structure. While whole-piece pitchclass histograms reflect a piece’s tonal trajectory only
indirectly, it is expected that by using sliding-window
histograms, a richer model of the sequence of keys may
be obtained. As will be explained in detail in Section 2,
musical form templates differ from one another, among
other aspects, by the sequence of local keys. Thus, the
sliding-window technique’s advantage in modelling a
piece’s tonal trajectory is expected to bear on its potential
success in detecting musical form as well.
In the present study we use both whole-piece and slidingwindow histograms to perform musical form classification
on 122 major-mode piano-sonata movements by W.
A. Mozart and L. v. Beethoven. Pieces were provided as
symbolic data (MusicXML format). We applied a variety
of algorithms—Support Vector Machines (SVMs), Artificial
Neural Networks (ANNs) and Gaussian Mixture Models
(GMMs)—on both whole-piece and sliding-window
representations. The classification/clustering tasks invol­
ved three generic formal templates which are common
among pieces of the Classical period: sonata form, ABA (or
ternary) form, and variation form (see detailed explanation
in Section 2). The supervised classification methods (SVMs
and ANNs) achieved significantly better results using the
sliding-window data. As for the GMM, we detected no
compelling correlation between the clustering results and
the investigated form categories; nonetheless, separation
was still slightly better for the sliding-window data.
Contemplating our results, we address the possibility
that the better success of the various algorithms when
applied to sliding-window data may be linked to the
dynamic behavior of particular pitch classes across a
piece’s timeline, as reflected in a number of additional
analyses (see Section 5.2).
In the remainder of this paper, we first discuss the
ways the differences among musical forms are expected
to manifest themselves in pitch-class histograms derived
from movements in these forms (Section 2); we then
describe our approach to classifying musical forms using
Chawin and Rom: Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form
both whole-piece and sliding-window histograms in
combination with various machine learning algorithms
(Section 3); finally, we describe and discuss our results and
their possible implications (Sections 4 and 5).
2. Pitch-Class Histograms as a Corollary of
Musical Form
Western art music of the common practice period (approx.
1600–1950) is characterized by a variety of movement forms,
ranging, for instance, from simple strophic songs to huge
symphonic poems. Different forms are characterized by such
aspects as their repetition patterns (certain sections recurring
at particular positions across the piece), tonal organization,
number and character of musical themes, etc. In particular,
specific formal layouts involve a typical tonal trajectory, that
is, a succession of specific local keys (defined with regard to
the main key) that occur at specific positions along the piece’s
timeline. In this section we describe the standard tonal
trajectories of the three generic formal templates addressed
in our study, and contemplate the expected implications for
modeling form on pitch-class histograms.
Sonata form, possibly the most influential formal layout
from the eighteenth to the twentieth century, falls into
three main sections known as exposition, development, and
recapitulation (Caplin, 1998; Hepokoski and Darcy, 2006;
Rosen, 1988; Schoenberg, 1967). In the exposition, after
presenting the main theme in the home key, the music
modulates to a secondary key to present the secondary
theme, as well as additional closing material. In Classical
sonata movements in the major mode, the secondary key
is most typically the dominant key (symbolized “V”). The
development section has no standard tonal scheme, and
may visit an unpredictable number of local keys. Yet, many
development sections begin in the dominant key and end
with a return to the main key (“I”). The recapitulation
section repeats much (or all) of the expositional material,
but typically remains in the main key throughout
(although local deviations to other keys are possible). A
further closing section—“coda”—is optional and remains,
as a rule, in the main key as well.
The Classical sonata form is chiefly associated with fast
movements, typically found among the first movements of
multi-movement cycles. While this sonata type (to which
we refer as “sonata-allegro”) may be considered to represent
the generic sonata, there are several sonata-form variants
that are close enough to this generic type to be subsumed
under a broader “sonata category.” Slow movements by
Mozart and Beethoven are often in sonata form, but they
typically evince a more concise design than sonata-allegro
movements. Beethoven’s fast sonata movements are quite
often preceded by a slow introduction which, necessarily,
influences the distribution of tonal zones across the
piece’s timeline with respect to the more customary design
without introduction. In the so-called “sonatina” form, or
“Type 1 sonata,” as in Hepokoski and Darcy (2006), there
is no development (or just a short passage substituting for
the development section). An additional category of sonatarelated formal designs is that of the sonata-rondo, which
combines structural principles of the rondo and the sonata
form. In terms of its tonal trajectory, the sonata-rondo is
225
linked to the generic sonata in that it features a modulation
to the secondary key in its expositional episode, and a
subsequent tonic-key re-invocation of secondary-key
material in the recapitulatory one (Hepokoski and Darcy,
2006). In our various classification tasks, we subsume all
particular variants of the generic sonata form under a broad
sonata label.
Ternary (or ABA) form designs involve the concept of a
main part (A) which is presented twice, with a different,
often contrasting middle section (B) interpolated between
these two presentations. Although there is an apparent
similarity between the ABA layout and that of the sonata
form, in that the latter has its development section
interpolated between the exposition and the recapitulation,
there are several crucial differences. Most importantly, as
opposed to sonata expositions, which invariably close in
the secondary key, the ABA form’s initial A section (even
where not literally identical with the final A section) closes
in the home key. Ternary designs are present, for instance, in
some Classical slow movements, mostly in connection with
a contrasting middle section in a different key. However, the
most common Classical ABA forms are the minuet and the
scherzo forms. The seventeenth- and eighteenth-century
minuet was gradually replaced in the nineteenth century
by the scherzo. Both movement types are characterized
by a main minuet (or the scherzo’s main section) which
is repeated in its entirety at the end of the movement,
whereby the middle is occupied by an often contrasting
“trio” section. The trio’s key more often than not differs
from that of the main minuet, common options being the
subdominant (“IV”), the parallel minor (“i”), and the relative
minor (“vi”). Accordingly, minuet/scherzo movements
typically (though not always) feature a global tonal contrast
between the main minuet’s key and that of the trio.
Finally, variation movements have a quite unique formaltonal layout. The theme presented at the beginning of such
movements is typically in the rounded binary form, which
is closely related with, but more concise than the sonata
form. It is then followed by a chain of variations, each
of which has the same length and tonal structure as the
theme, and is—in the Classical period almost invariably—
also in the same key. The only exception to this rule is a
minor-mode variation in the parallel minor of the main
key (in major-mode movements), which typically occurs
about halfway into the movement (the exact location of
the minor-mode variation may vary). The entire movement
often closes with a “coda” prolonging the final variation.
As may be gleaned from Figure 1, representing a
comparison of the three prototypical formal designs
discussed above, the temporal organization of tonal areas
(or keys) throughout a given movement is expected to
differ substantially among the three forms. Whereas ABA
movements have a symmetrical tonal design (the main
key flanking the trio’s—or B-section’s—key on both sides),
sonata movements feature their central tonal contrast
already in their first section (exposition), resolving it in
their final section (recapitulation), with the middle section
(development) consisting of an unpredictable succession
of local keys. Finally, variation movements reproduce,
once and again, the same tonal structure (centered, as
226
Chawin and Rom: Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form
Figure 1: Standard formal and tonal layouts of sonata
form, ABA (ternary) form, and variation form. The Roman
numerals stand for keys associated with degrees of the
home key, “I” representing the main key.
a rule, around the main key), typically interrupting it
through a minor-mode variation located around the
movement’s middle. We expect the general differences of
tonal organization among the three forms to be reflected
in actual pieces’ histograms, in particular in histograms
based on the sliding-window technique.
Having said that, it is important to note that not every
single piece of the repertoire under analysis abides by
these strict tonal trajectories. Particularly in Beethoven—
often considered an early-Romantic composer, rather than
a Classical one—there are notable deviations. For instance,
the first movement of the Waldstein Sonata Op. 53—in
every other sense a regular sonata-allegro movement—
modulates to the major-mode key on the third scale degree
as its secondary key, instead of the expected dominant key,
while the variation movement from the last Piano Sonata
Op. 111 lacks the customary minor-mode variation, etc.
Ultimately, given that a piece’s formal layout—by and
large—manifests itself in its tonal trajectory, one may opt
for modeling musical form on the succession of local keys
throughout a given piece (rather than the distribution of
pitch classes, as we propose to do here). In fact, a steadily
growing body of expert harmonic analyses of Classical
pieces makes it possible to extract ground-truth data on
the succession of local keys across entire corpora of music
as a preliminary step toward classification/clustering
experiments. However, in our present contribution we
opt for operating directly on the raw data (pitch-class
distributions), while confining the use of expert annotations
to the level of whole-piece data (a piece’s key and form
label). In Section 5.2.2, we nonetheless contemplate the
possibility of employing expert annotations of local keys
as a perspective for further research.
3. Method
3.1 Dataset
We base our dataset on all piano-sonata movements by W.
A. Mozart (totalling 54)1 and L. v. Beethoven (totalling 102).2
For this entire corpus we provide metadata, including
a form label and a global key for each movement. A file
containing our metadata is available on our GitHub page.3
The metadata is based on expert annotations provided
by the authors. Main-key information at the whole-piece
level is common knowledge and entails no ambiguity with
regard to the repertoire under investigation. While a more
complete MIR workflow might be expected to include a
function to extract key information algorithmically, the
key-finding algorithms featured in the code library used
in the present research4 did not yield sufficiently accurate
results—not even in conjunction with this small (and,
tonally speaking, fairly conservative) corpus—in order to
be integrated into the present workflow.
In our metadata, we assigned a total of twenty one unique
form labels to individual movements across the corpus,
representing a high-resolution differentiation among formal
subcategories. Fourteen of these twenty one subcategories
map onto the three main form categories discussed in the
previous section: sonata, ABA, and variations.
Importantly, the dataset used in the present analysis
is comprised only of the 122 movements in major-mode
keys (48 by Mozart, 74 by Beethoven). Since pitch-class
histograms are crucially influenced by the choice of a
movement’s mode, and, additionally, certain forms—
such as the sonata form—have different tonal trajectories
in major and in minor, incorporating minor-mode
movements in the corpus under analysis would interfere
critically with the ability to perform separation on the
basis of a movement’s form. In fact, the implications on
a piece’s structure of being in the minor mode are so
overriding that we proceed from the assumption that,
given a corpus containing a sufficient number of minormode pieces, one would opt for devising a separate set of
form labels for major- and minor-mode forms.
Of the major-mode pieces in the corpus under analysis, a
total of 76 movements correspond to the generic “sonata”
label, 20 are labeled “ABA,” and 7 are labeled “variations.”
We include in our metadata yet another seven form labels,
covering another nineteen movements, including fugues,
rondos (not sonata-rondos!), free forms, etc. While all of
these “miscellaneous” formal layouts are incompatible
with our three generic labels, none of them amounts to
a generic formal category in its own right. We accordingly
choose to leave the corresponding movements—which
represent 16% of the total 122 major-mode movements
of our corpus—unlabeled in our analysis.
As a preliminary step, we converted all individual move­
ments from their original MuseScore format to MusicXML.
Then, prior to extracting pitch-class distributions from these
latter files, we had to give some thought to the question
of passages notated only once but played multiple times.
In fact, all classical forms discussed in Section 2 normally
incorporate literal repeats of entire sections designated by
either repeat signs, or, in ABA forms, using the instruction
Da capo (meaning going back to the beginning of the
piece). However, in certain movements composers choose
to omit the customary repeat signs, meaning that passages
that would otherwise be repeated are heard only once. To
establish a uniform treatment of all movements of a given
form, we disregard repeat signs, and include each notated
passage only once. On the other hand, we append Da capo
repetitions, because such repetitions define the ternary
Chawin and Rom: Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form
227
form as such (note that in many movements in ABA form,
the final “A” section is not written out but rather indicated
using a Da capo sign). Finally, a particular type of repetition
in conjunction with repeat signs involves additional bits of
music known as “voltas.” Although our decision to ignore
repeat signs also renders “voltas” redundant, we retain these
bits, while omitting the literally repeated measures.
3.2 Preprocessing and Feature Extraction
3.2.1 Unification of absolute key
All movements participating in the analysis were
transposed to C major, such that all interim keys were
transposed accordingly, without wrapping of keys with
many accidentals. Notably, some current approaches to
working with symbolic data, as, for example, by Lieck and
Rohrmeier (2020), do not require previous knowledge
of a piece’s tonic key, and, accordingly, do not apply keyunifying measures, employing, instead, transpositioninvariant metrics. However, in the present study we opt for
bringing all pieces into line using a unifying transposition.
MusicXML data (unlike MIDI) distinguishes between
different enharmonic spellings of a given pitch class. Note
that enharmonically equivalent pitch spellings can mean
musically very different things. For instance, while the
pitch E♭ in C major is often tantamount to moving to
the parallel minor—a procedure associated with specific
formal locations—its enharmonic equivalent D♯ most
often boils down to merely ornamental chromaticism
and, as such, has little formal implications. Accordingly,
in our modeling we use the richer features of enharmonic
spellings supported by the MusicXML format.
As a result of our decision to distinguish between
enharmonic spellings on the one hand, and unify
datapoints through transposition to C major on the other,
the corpus under analysis does not abide by the twelve
pitch classes emblematic of MIDI data, but entails a larger
number of “pitch spellings”—some of which are rather offcentered using × and ♭♭ signs. The pitch spellings used
in our data amount to a total of twenty six (see Figure 2
for details). The extremely off-centered pitch spellings
occur in conjunction with distant modulations in pieces
whose principal keys are already quite distant from C
major to begin with. For instance, the B♭
♭ in our notelevel representation of Beethoven’s Sonata Op. 90, 2nd
movement originates from a local deviation to B♭ minor in
an E major movement (incidentally, as can be seen in this
figure, the occurrences of this pitch spelling throughout
the corpus are quantitatively negligible). Intriguingly,
the great majority of off-centered pitch spellings stem
from works by Beethoven, allowing for Mozart’s use of
a more conventional range of global keys and interim
modulations.
3.2.2 Extracting histogram vectors from sliding windows
We used the music21 toolkit5 to extract whole-piece
histograms and sliding-window histograms for each
movement of the corpus. With regard to the slidingwindow technique, this procedure consists of determining
a window size (expressed as a percentage of the piece’s
duration) and the desired number of windows, and
Figure 2: Count of pieces containing each of the 26 pitch
spellings throughout the analyzed corpus, after a unifying transposition to C major. The dataset consists of 122
major-mode movements.
computing the start and end positions for each window
(note that, depending on the settings of these parameters,
windows may partially overlap). Subsequently, for each
window, we count all notes that fall (entirely or partially)
within its time span, weighting each occurrence by its
duration. For notes falling partially outside the window,
we take only the portion within the window into account.
Finally, the entire histogram derived from a given window
is normalized, such that all entries corresponding to
the various individual pitch spellings add up to 1. This
normalized format warrants comparability across pieces
of differing lengths as well as across windows embodying
a different volume of note durations.
Each of the histograms thus derived is then treated as
a vector of 26 real values in the range [0,1] (zero stands
for pitch spellings absent from a given histogram).
The histograms representing individual windows in a
given piece are then concatenated according to their
temporal order to form a vector of length 26 times the
number of windows. Note that a whole-piece histogram
representation of a given piece is simply a special case
of the sliding-window one, where there is only a single
window of size 100%.
3.2.3 Choice of sliding-window parameters
The choice of the size and number of sliding windows
poses a crucial methodological decision for our analysis.
Notably, for very short pieces, if the window size is too
small, each window will correspond to a very short time
span (for example, a single measure), such that the
resulting histogram will be extremely sensitive to melodic
228
Chawin and Rom: Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form
detail, and may fail to reflect the piece’s large-scale tonal
plan. Likewise, if the window size is too large, the resulting
level of granularity may not enable us to detect tonal
changes that demarcate important formal boundaries. It
appears that a good size for a sliding window to sustain
our form classification task would fall within a range of
10%–20% of the piece’s size.
Another consideration involves the number of sliding
windows, which is a corollary of the window size on the
one hand and the desired amount of overlap between
adjacent windows on the other. While overlap evidently
entails potential redundancy, a certain amount of overlap
is desirable, because a zero overlap makes it hard to detect
tonal events occurring at the boundaries between windows.
We consider an overlap of 50%–90% of the individual
window’s size to represent a useful range for our analysis.
Having defined these two ranges—for both the window
size and the overlap between adjacent windows—we
opted for experimenting with, and reporting results (in
the supervised learning experiment) for a total of nine
configurations based on different settings for these two
parameters. For the individual configurations, see Table 1.
3.3 Analysis
In our analysis below we use the scikit-learn library
(Pedregosa et al., 2011).6 Our analysis code is available on
our GitHub page.
3.3.1 Supervised learning—classification using Support
Vector Machines and Artifical Neural Networks
We performed supervised classification on the pianosonata movements under investigation according to the
three main form categories described above. We compared
the performances of two supervised models—Support
Vector Machines (SVMs) and Artificial Neural Networks
(ANNs).
To prevent overfitting due to the small amount of data,
we employed Leave-One-Out cross-validation. This involves
conducting as many tests as there are labeled items (103).
For each iteration, the test set consists of a single item,
while the training set consists of all the remaining 102
labeled items.
We perform this training-and-testing procedure both
on the whole-piece data and the sliding-window data.
With regard to the sliding-window data, after obtaining
Table 1: The nine configurations of parameters used in the
preprocessing. For each desired window size (as percentage of the piece’s size), three configurations were selected
such that the number of sliding windows correspond with
approximate overlaps of 50%, 70% and 90% between
adjacent windows.
Size
10%
15%
20%
∼50%
18
12
9
∼70%
30
20
15
∼90%
90
58
40
Overlap
the feature vectors (as described in Section 3.2.2), we
reduced the training set’s dimensionality to 26 using
Principal Component Analysis (PCA) to match the
number of dimensions of the whole-piece histogram
representation (for which no dimension reduction has yet
been performed at this stage of the analysis). By granting
both these datasets an identical number of dimensions,
we claim to provide uniform conditions for comparing
the performance of our classification algorithm on both
sets. After training the model and prior to classification,
the feature vector of the test set was projected onto the
same lower-dimension space defined by the Principal
Components derived from the training set to yield a data
point of similar dimensions.
Given that some of the 26 entries in the whole-piece
representation stand for extremely rare pitch spellings
which appear only in a very small subset of the corpus (as
shown in Figure 2), and are thus potentially redundant, we
opted for a dimensionality reduction of the whole-piece
data from 26 to 12. The dimensionality 12 was chosen in
analogy to widespread MIDI-pitch based analyses (Lieck
and Rohrmeier, 2020; Quinn and White, 2017; Sapp,
2005). Accordingly, we repeated our entire classification
experiment twice: at 26 and at 12 dimensions. For the
lower-dimensionality experiment, sliding-window data
was reduced directly to 12.
For the Support Vector Machine (Vapnik, 1998), we used
the SVM model available from scikit-learn with
an RBF kernel, the default value for gamma, and tested
various values for C—the regularization parameter—as
described in the Results section.
In order to compare the performance of the SVM method
with that of Artificial Neural Networks (Briot et al., 2020;
Goodfellow et al., 2016), we repeated the entire experiment
using ANNs. We employed the MLPClassifier module,
using a hidden layer of size 8, the default ReLu activation
function, and the L-BFGS solver, which is recommended
for small datasets.
3.3.2 Unsupervised learning—clustering using Gaussian
Mixture Models
A Gaussian Mixture Model (GMM) (Reynolds, 2009) is an
unsupervised learning method that treats data points
as the emissions of naturally occurring probability
distributions, and attempts to extrapolate the most likely
probability distributions. By asserting that the data points
are samples drawn from a certain number of distributions,
or “components,” one may then proceed to estimate which
data point originated from which component.
We used the GaussianMixture module of
scikit-learn to model all the labeled movements
in our corpus as drawn from three distinct components,
expected to roughly correspond to the three generic form
labels used in our analysis (sonata, ABA and variations).
Prior to clustering, we used PCA to reduce dimensionality
to three. The analysis was run on both whole-piece and
sliding-window data, whereby the latter analysis was based
on splitting each piece into 58 windows of size 15%. 100
iterations of the GMM clustering were performed on each
of the two representations.
Chawin and Rom: Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form
4. Results
4.1 SVM Results
SVM supervised classification using the whole-piece
histogram data (26-entry vectors) resulted in an accuracy of
74%. This result may be considered weak, as it corresponds
to the naive baseline (74%) of classifying all pieces as
sonata movements (based on the fact that this is the
largest category). The same model attained an accuracy of
72% when PCA was performed to reduce dimensionality
to 12 prior to training the SVM model.
Using sliding-window histograms with dimension
reduction to 26 (as explained in Subsection 3.3.1) resulted
in accuracy scores ranging from 83% to 88% across the
nine configurations tested for different window sizes and
overlap, with an average accuracy of 86%. Representing
these results by mean and SD, we report 86% ± 1.82%.
When reducing dimensionality to 12, the accuracy
scores were in the same range (83%-88%), with an average
accuracy of 85%. It appears that smaller window sizes
correlate with slightly higher accuracy scores, with the size
of overlap between windows having no apparent effect on
the score (but this trend is not entirely stable across all
parameter configurations).
Regularization parameter values: Higher values for the
regularization parameter C mean that during the training
phase, correct classification of data points according
to their actual labels is prioritized, even at the cost of a
more complex separator. We repeated our classification
experiment with several different C values. It thereby
became apparent that, when using C values below the
default value 1, classification based on sliding-window
data did not fare any better than that based on whole-piece
data (accuracy around 74%). However, for the default value
1, the sliding-window representation achieved noticeably
better results than those of the whole-piece histogram
data. For any C value above 2, the scores are essentially the
same as those reported above, which were computed for
the individual case of C = 4 (accuracy ranging from 83% to
88% for the sliding-window data).
This improved achievement for a relatively high C
value is not surprising: as the dataset is rather small and
inhomogeneous, we conjecture that the training set will
be spread out unevenly, making the separation quite
sensitive to individual outliers.
A typical confusion matrix may look like the one in
Table 2. In the particular case at hand, the algorithm
seems to have had particular trouble classifying the
ABA movements, as only 10 ABA movements out of 20
were classified correctly. On the other hand, out of 76
Table 2: A sample SVM classification confusion matrix for
sliding-window data (for 18 windows of size 10%, C = 4).
Actual
Sonata
ABA Variations
Predicted
Sonata
74
8
0
ABA
2
10
0
Variations
0
2
7
229
movements in sonata form, all but two were identified
correctly at the test phase, and all variation movements
were classified correctly.
4.2 ANN Results
Artificial Neural Networks, an inherently different
classification model from SVMs, yield similar results. For
the whole-piece histogram data, the network achieved
a somewhat worse accuracy score in comparison with
our SVM classification experiment (66%). For the nine
configurations of sliding windows, its performance under
reduction to 26 dimensions was comparable to that of
the SVM model, with scores ranging from 83% to 88%,
averaging 85%—reported by mean and SD: 85% ± 1.63%.
For dimensionality reduction to 12 dimensions, the network
achieved similar scores: 66% for the whole-piece histogram
data, and scores ranging from 80% to 90% for the slidingwindow histograms, with mean and SD of 83.6% ± 2.87%.
This result is reassuring, especially due to the fundamental
differences between the two models, and corroborates our
conjecture that the sliding-window representation holds
useful data for classification by form, and by far surpasses
the performance of the whole-piece data.
4.3 GMM Results
The clustering results were evaluated as follows: for
each of the iterations, the three resulting clusters were
compared with the actual three formal categories: sonata,
ABA and variations, and the mapping which achieved
the best match was selected. The GMM clustering for
these data typically tended to converge to one of several
possible options for each selection of parameters. Over
the 100 iterations, the accuracy scores for the sliding
window histograms (58 windows of size 15%) averaged at
58.9%, ranging from 44.7% to 64.1%. The scores for the
whole-piece histograms fared even worse, with an average
accuracy score of 50.5%, ranging from 41.7% to 63.1%.
This result is, for both the whole-piece and the slidingwindow data, significantly worse than the naive baseline
of classifying all pieces as sonata form movements.
Thus, we cannot infer the existence of a connection
between the unsupervised clustering results and the actual
three form categories. Furthermore, music-theoretical
examination of the clustering results fails to pinpoint
any particular structural property which may correlate
compellingly with this clustering.
5. Discussion and Conclusion
5.1 Interpretation of Results
Our results generally point to the viability of using pitchclass histograms to model musical form. At the same time,
our classification experiments show sliding-window data
to outperform the whole-piece histogram data by far, a
result which agrees with our hypothesis formulated at
the outset of this paper. Especially encouraging are the
very similar results for both supervised models, indicating
that the success on classifying by formal categories lies in
the data representation, rather than the analytical model
employed. We consider the near-identical performance
of the SVM and the ANN models to indicate the solidity
230
Chawin and Rom: Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form
of our method and the correctness of our hypothesis,
rendering the application of further supervised learning
models to the same task non-essential for the present
precursory study.
With regard to the unsupervised learning task, separation
into three categories yielded poor results for both wholepiece and sliding-window data. This may be traced
back to the possible presence of other, more dominant
features in the data representation, which interfere with
the algorithm’s ability to focus on form-related features.
However, at the present stage of investigation we do not
have clear indication as to what structural features of the
music may have played a role in the results of our GMM
clustering experiment. We consider the unsupervised
part of our investigation to be of an exploratory nature—
given the inconsequential results, we do not consider it
worthwhile to implement additional unsupervised models
for the present task.
Given the success of both supervised learning algorithms
in classifying pieces by form labels, one may expect to
observe a certain natural separation into the three generic
form categories in visual representations, too. Arguably,
the PCA visualization of our dataset shown in Figure 3,
representing a three-dimensional reduction of our slidingwindow data, suggests that data points pertaining to the
same form label are, on the whole, grouped reasonably
well together.
A further interesting insight into our sliding-window
data may be gleaned from averaging all pitch-class vectors
for each of the three investigated form categories, and
examining the behavior of each of the individual 26
pitch spellings over time. Figures 4, 5 and 6 show the
relative weight of several selected pitch spellings across
90 windows of size 10%, averaged for all movements of
the same form category. Examining Figure 6 (variation
movements), it is hardly surprising to find out that the
pitch classes C and G dominate throughout (because one
never quits the main key for longer than a few measures),
with E♭ peaking about halfway into the movement, that
is, at the customary position of the minor-mode variation.
In comparison, Figure 4 (sonata movements) shows a
Figure 3: A 3D PCA visualization of the sliding-window
data from all 103 labeled movements (blue crosses =
sonata; red diamonds = ABA; green squares = variations).
Dashed lines suggest possible separation.
Figure 4: Development of selected pitch-class weights
over time in sliding-window data averaged for all sonata
movements of the corpus. Pitch names are placed above
the relevant curve’s peak.
Figure 5: Development of selected pitch-class weights over
time in sliding-window data averaged for all ABA movements of the corpus.
Figure 6: Development of selected pitch-class weights
over time in sliding-window data averaged for all variation movements of the corpus.
Chawin and Rom: Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form
more dynamic behavior, with many lines crisscrossing
one another. Especially interesting is the increased usage
of F♯ in the first third of the piece, corresponding to
the expositional modulation to the dominant key. Later
on, shortly before the piece’s middle, that is, at the
approximate onset position of the development section,
the diagram is characterized by a sudden proliferation of
pitch classes relatively distant with regard to the pitch
collection of C major. As for Figure 5 (ABA movements),
it may be noticed from the behavior of several individual
pitch classes over time that there is an underlying
symmetry between the first and the final third of the
timeline representation, corresponding to the initial and
the final A section of the ternary form.
Contemplating potential caveats of our methodology,
the variety of pieces’ lengths across the corpus has
possibly problematic implications for the slidingwindow representation. For instance, in the case of
larger-scale movements, sliding-window data runs the
risk of being insensitive to important local tonal events;
with regard to shorter pieces, on the other hand, there
is the risk of being overly sensitive to melodic and
harmonic details that have no bearing on the piece’s
tonal and formal trajectory. However, these side-effects
are arguably limited, as the tonal and formal trajectory of
both longer and shorter pieces is expected to scale with
the piece’s length. Ultimately, this issue merits further
consideration.
A further potential methodological drawback is that of
the particularly small dataset, suggesting that classification
results may be influenced by hidden variables. For
example, if a particularly rare pitch spelling should be
used incidentally only in conjunction with pieces in, say,
ABA form, the supervised learning model would come to
associate it with the ABA form, although the rare pitch
spelling in question might just as well be connected with
the piece’s absolute key, rather than its structure. Although
this undesirable effect is theoretically possible, we expect
it to be mitigated by the dimensionality reduction, which
is blind to formal classification, as well as by the LeaveOne-Out cross-validation method. We further consider it
unlikely that the dataset should incorporate particularly
dominant hidden variables, since the data–—which
spans many decades and stems from two quite dissimilar
composers–—exhibits significant variance within each of
the form categories investigated.
Finally, while our SVM and ANN analyses achieved good
results with regard to identifying sonata and variation
movements, results on ABA movements were rather
poor, with only about 50% of the movements in this
form classified correctly (cf. Table 2). Notably, as can be
gleaned from Figure 1, of the three generic forms labeled
in our study, ABA is the only one whose layout involves
no fixed subsidiary key. By contrast, sonata and variation
movements of the repertoire under investigation entail
characteristic subsidiary keys: the dominant and the
parallel minor key, respectively. This means that ABA
movements, while sharing a similar overall design, have
little in common in terms of tonal trajectory, because the
key of the middle section varies from case to case. This
231
possibly explains why a supervised learning algorithm
trained on pitch-class distributions may face difficulty
grasping what makes a given succession of pitches qualify
as an ABA movement, and will accordingly often fail to
classify ABA movements correctly.
More specifically, only five of the twenty ABA movements
of the corpus were classified correctly by both supervised
learning algorithms (SVMs and ANNs) throughout the
entire experiment. Three of these (Mozart’s K. 282/ii and
K. 331/ii, and Beethoven’s no. 28/ii) have their middle
(“B”) section in the subdominant of the main key. This
shared interim key may have played a pivotal role in
the way the algorithms came to model the ABA label.
However, this explanation is only partly compelling. For
one thing, there are another two ABA movements with
middle sections in the subdominant key which were,
nevertheless, often classified incorrectly—in particular,
one of these, the second movement of Beethoven’s
Piano Sonata no. 12, a scherzo in A♭ major whose trio
(middle section) is in the subdominant key of D♭ major,
was constantly mistaken for a sonata movement. What is
more, two other ABA movements whose middle sections
are in a different key than the subdominant were always
classified correctly. Ultimately, while we have a general
hunch about why our classification algorithms achieved
particularly poor results with regard to the ABA form, the
reasons why certain movements were classified correctly,
while others were not, remain largely obscure.
To conclude, we are aware that our modeling of musical
forms on pitch-class distributions may be only successful
for a limited chapter in music history, a success that may
be due to the fairly uniform tonal trajectories of pieces
in the Classical style (until about 1830)—notwithstanding
several deviations from the norm already found in some
Beethoven movements as discussed above. Further
investigation is required in order to assess whether
histogram-based analysis may succeed in classifying later
pieces of the Romantic period according to form labels,
given that analyses of nineteenth-century and latetonal pieces clearly show that formal layouts no longer
correspond closely with a typified succession of local keys.
We conjecture that trying to separate, say, Chopin sonataform movements from his nocturnes based on pitch-class
content will not yield remarkable results.
5.2 Perspectives for Further Research
5.2.1 Extending analysis to minor-mode pieces
As noted above, the sensitivity of histogram-based analysis
to a movement’s mode played a major role in our decision
to exclude minor-mode pieces from our analysis altogether.
A further development of our method would strive to
incorporate pieces in the minor mode in form-oriented
analyses as well. We proceed from the assumption that,
given the implications of a piece’s mode on its tonal and
formal trajectory, a machine learning algorithm attuned to
handling both major- and minor-mode pieces would need a
separate set of form labels for the minor mode. For instance,
while Classical variation movements in major often feature
one variation in the parallel minor, the situation with
regard to variation movements in the minor is pretty much
232
Chawin and Rom: Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form
the same in reverse: such movements often incorporate a
variation in the parallel major at some midway position.
Arguably, under such conditions a supervised learning
algorithm would fare better if trained on separate labels for
major- and minor-mode variation movements.
5.2.2 Modeling form on local-key data
Given that different formal layouts manifest themselves
in different tonal trajectories, one may consider modeling
musical form on the succession of local keys throughout a
piece. We contemplate two possible ways of gleaning localkey information from a piece: (1) extracting the sequence
of keys from the raw data (i.e., symbolic representations or
audio data) algorithmically; (2) using expert annotations
on local keys (e.g., as part of a more extensive harmonic
analysis).
When opting for extracting a piece’s sequence of local keys
algorithmically, one would benefit from the improvements
achieved by recent MIR studies on global and local key
identification. For instance, Nápoles López et al. (2019)
approach the task of key finding by applying a Hidden
Markov Model to key profiles. Improvements have also been
made on handling the minor mode in key-detection tasks,
as by Albrecht and Shanahan (2013).
In order to model formal processes, it may be important
to estimate not only individual keys, but also local key
changes. For instance, Feisthauer et al. (2020) base their
modeling of key shifts on music-theoretical knowledge
of proximity among different keys and standard keyestablishing progressions. Tested on a selection of Classical
string quartets, their model achieved over 80% success in
predicting a piece’s modulation plan.
Note, however, that only some of the modulatory
processes taking place throughout a given piece represent
a corollary of the formal trajectory. Many music-theoretical
sources distinguish between two types of modulatory
processes: “tonicizations” vs. “modulations” (Aldwell
et al., 2018). Whereas modulations shape the piece’s
strategic tonal plan, tonicizations represent incidental,
quasi-momentary key changes. A piece’s modulation plan
is, by and large, characteristic of its underlying formal
design. On the other hand, local tonicizations are as a
rule the property of an individual movement, and as such
are less indicative of the formal trajectory, which is, by
definition, common to many pieces. Nápoles López et al.
(2020) develop a model which succeeds in distinguishing
between, and predicting occurrences of the two categories.
However, their method is not specifically directed towards
discarding (local) tonicizations while retaining only
the more substantial modulations. Further work on
separation between tonicizations and modulations has
been achieved by Micchi et al. (2020) and Chen and Su
(2021). Ultimately, an individual piece’s sequence of local
keys entails—besides crucial information on form-related
modulations—also a great deal of “noise,” that is, local
tonicizations and other chromatic pitches that obscure
the underlying tonal trajectory.
Another way to obtain a piece’s sequence of local keys
is by expert annotations. Ground-truth data on local
keys is now obtainable from several recent data projects
which offer meticulous harmonic analyses linked with
the note-level representations via timestamps. In fact,
full harmonic analyses have been provided for most of
the work corpus addressed in our study: Hentschel et al.
(2021) offer a harmonic analysis of Mozart’s complete
piano sonatas, while Chen and Su (2018) analyze the first
movements of Beethoven’s piano sonatas. Seemingly,
our experiment may be repeated based on local-key
information derived from these annotations. However,
proceeding in this direction would require unifying the
very different annotation standards used in these two
corpora. For instance, while Hentschel et al. (2021) make
a clear distinction between local tonicizations and more
“strategic,” form-related modulations, no such distinction
is proposed by Chen and Su (2018).
5.2.3 Further extensions
We finally propose that pitch-class histogram methods,
and, in particular, sliding-window histograms, may
be applicable to a variety of additional MIR tasks. In
previous work, various computational methods were
utilized to model a composer’s personal style—even to
a degree that allows to make inferences on authenticity,
as in van Kranenburg (2006). Our PCA analysis of the
103 data points derived from the labeled major-mode
movements of our corpus, presented in Figure 7,
suggests that at least a certain degree of separation by
composer may be feasible. Further work will be needed
to explore the viability of sliding-window histograms
for composer assignment and other machine learning
tasks.
Figure 7: A 3D PCA composer-separated visualization of
the sliding-window data from all 103 labeled movements
(blue crosses = Beethoven; red diamonds = Mozart).
Chawin and Rom: Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form
Notes
1
The files of Mozart’s piano sonatas were derived from
MuseScore files edited by the DCML team at the École
Poly­technique Fédérale de Lausanne. These files are
available at https://github.com/DCMLab/mozart_
piano_sonatas.
2
The files of Beethoven’s piano sonatas were uploaded
in MuseScore format by user ClassicMan to https://
musescore.com/user/19710/sets/54311.
3
https://github.com/corpusTAU/Sliding-WindowForm-Modeling.
4
music21, see further details below.
5
Available at https://web.mit.edu/music21/.
6
Available at https://scikit-learn.org.
Acknowledgements
This project is supported by The Israel Science Foundation
(grant No. 480/17) and by Tel Aviv University. We thank the
editor and the anonymous reviewers for their insightful
comments. We further thank Dr. Moni Shahar of the Tel
Aviv University Center for AI and Data Science (TAD) for
his help in carrying out the statistical analysis and to
Johannes Hentschel, Dr. Robert Lieck, and Dr. Fabian C.
Moss of the École Polytechnique Fédérale de Lausanne
Digital and Cognitive Musicology Lab, and to Dr. Markus
Neuwirth of the Anton Bruckner University, Linz, for
sharing with us their expertise and suggestions.
Competing Interests
The authors have no competing interests to declare.
References
Albrecht, J., and Shanahan, D. (2013). The use of large
corpora to train a new type of key-finding algorithm:
An improved treatment of the minor mode. Music
Perception: An Interdisciplinary Journal, 31(1): 59–67.
DOI: https://doi.org/10.1525/mp.2013.31.1.59
Aldwell, E., Schachter, C., and Cadwallader, A. (2018).
Harmony and voice leading. Cengage Learning.
Allegraud, P., Bigo, L., Feisthauer, L., Giraud, M.,
Groult, R., Leguy, E., and Levé, F. (2019). Learning
sonata form structure on Mozart’s string quartets.
Transactions of the International Society for Music
Information Retrieval (TISMIR), 2(1): 82–96. DOI:
https://doi.org/10.5334/tismir.27
Bigo, L., Giraud, M., Groult, R., Guiomard-Kagan, N.,
and Levé, F. (2017). Sketching sonata form structure
in selected classical string quartets. In International
Society for Music Information Retrieval Conference.
Briot, J.-P., Hadjeres, G., and Pachet, F.-D. (2020).
Deep Learning Techniques for Music Generation.
Springer. DOI: https://doi.org/10.1007/978-3-31970163-9
Caplin, W. E. (1998). Classical Form: A Theory of Formal
Functions for the Instrumental Music of Haydn, Mozart,
and Beethoven. Oxford University Press, USA.
Caplin, W. E., Hepokoski, J., and Webster, J.
(2009). Musical Form, Forms & Formenlehre: Three
Methodological Reflections. Leuven University Press.
233
Chen, T.-P., and Su, L. (2018). Functional harmony
recognition of symbolic music data with multi-task
recurrent neural networks. In International Society for
Music Information Retrieval Conference, pages 90–97.
Chen, T.-P., and Su, L. (2021). Attend to chords:
Improving harmonic analysis of symbolic music
using transformer-based models. Transactions of the
International Society for Music Information Retrieval,
4(1): 1–13. DOI: https://doi.org/10.5334/tismir.65
Feisthauer, L., Bigo, L., and Giraud, M. (2019). Modeling
and learning structural breaks in sonata forms. In
Interna­tional Society for Music Information Retrieval
Conference.
Feisthauer, L., Bigo, L., Giraud, M., and Levé, F. (2020).
Estimating keys and modulations in musical pieces. In
17th Sound and Music Computing Conference.
Fucks, W. (1962). Mathematical analysis of formal
structure of music. IRE Transactions on Information
Theory, 8(5): 225–228. DOI: https://doi.org/10.1109/
TIT.1962.1057746
Gedik, A. C., and Bozkurt, B. (2010). Pitch-frequency
histogram-based music information retrieval for
Turkish music. Signal Processing, 90(4): 1049–1063.
DOI: https://doi.org/10.1016/j.sigpro.2009.06.017
Goodfellow, I., Bengio, Y., and Courville, A. (2016).
Deep learning. MIT press.
Hentschel, J., Neuwirth, M., and Rohrmeier, M. (2021).
The Annotated Mozart Sonatas: Score, harmony, and
cadence. Transactions of the International Society for
Music Information Retrieval, 4(1): 67–80. DOI: https://
doi.org/10.5334/tismir.63
Hepokoski, J., and Darcy, W. (2006). Elements of
sonata theory: Norms, types, and deformations in the
lateeighteenth-century sonata. Oxford University Press.
DOI: https://doi.org/10.1093/acprof:oso/9780195146​
400.001.0001
Jiang, D.-N., Lu, L., Zhang, H.-J., Tao, J.-H., and Cai, L.-H.
(2002). Music type classification by spectral contrast
feature. In Proceedings of the IEEE International
Conference on Multimedia and Expo, volume 1,
pages 113–116. IEEE. DOI: https://doi.org/10.1109/
ICME.2002.1035731
Jiang, N., and Müller, M. (2013). Automated methods
for analyzing music recordings in sonata form. In
International Society for Music Information Retrieval
Conference, pages 595–600.
Koduri, G. K., Gulati, S., Rao, P., and Serra, X. (2012).
Rāga recognition based on pitch distribution methods.
Journal of New Music Research, 41(4): 337–350. DOI:
https://doi.org/10.1080/09298215.2012.735246
Krumhansl, C. L. (1990). Cognitive Foundations of
Musical Pitch. Oxford University Press.
Krumhansl, C. L., and Kessler, E. J. (1982). Tracing the
dynamic changes in perceived tonal organization in a
spatial representation of musical keys. Psychological
Review, 89(4): 334–368. DOI: https://doi.org/10.1037/​
0033-295X.89.4.334
Lidy, T., and Rauber, A. (2005). Evaluation of feature
extractors and psycho-acoustic transformations for
234
Chawin and Rom: Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form
music genre classification. In International Conference
on Music Information Retrieval (ISMIR), pages 34–41.
Lidy, T., Rauber, A., Pertusa, A., and Quereda, J.
M. I. (2007). Improving genre classification by
combination of audio and symbolic descriptors using
a transcription system. In International Conference on
Music Information Retrieval (ISMIR), pages 61–66.
Lieck, R., and Rohrmeier, M. (2020). Modelling
hierarchical key structure with pitch scapes. In
Proceedings of the 21st International Society for Music
Information Retrieval Conference.
Micchi, G., Gotham, M., and Giraud, M. (2020). Not
all roads lead to Rome: Pitch representation and
model architecture for automatic harmonic analysis.
Transactions of the International Society for Music
Information Retrieval (TISMIR), 3(1): 42–54. DOI:
https://doi.org/10.5334/tismir.45
Nápoles López, N., Arthur, C., and Fujinaga, I. (2019).
Key-finding based on a hidden Markov model and key
profiles. In 6th International Conference on Digital
Libraries for Musicology, pages 33–37. DOI: https://
doi.org/10.1145/3358664.3358675
Nápoles López, N., Feisthauer, L., Levé, F., and
Fujinaga, I. (2020). On local keys, modulations, and
tonicizations: A dataset and methodology for evaluating
changes of key. In 7th International Conference on
Digital Libraries for Musicology, pages 18–26. DOI:
https://doi.org/10.1145/3424911.3425515
Panagakis, I., Benetos, E., and Kotropoulos, C. (2008).
Music genre classification: A multilinear approach. In
International Conference on Music Information Retrieval
(ISMIR), pages 583–588.
Pedregosa, F., Varoquaux, G., Gramfort, A., Michel, V.,
Thirion, B., Grisel, O., Blondel, M., Prettenhofer,
P., Weiss, R., Dubourg, V., Vanderplas, J., Passos,
A., Cournapeau, D., Brucher, M., Perrot, M., and
Édouard Duchesnay. (2011). Scikit-learn: Machine
learning in Python. Journal of Machine Learning
Research, 12: 2825–2830.
Quinn, I. (2010). Are pitch-class profiles really “key for key”?
Zeitschrift der Gesellschaft für Musiktheorie [Journal of
the German-speaking Society of Music Theory], 7(2):
151–163. DOI: https://doi.org/10.31751/513
Quinn, I., and White, C. W. (2017). Corpus-derived key
profiles are not transpositionally equivalent. Music
Perception: An Interdisciplinary Journal, 34(5): 531–540.
DOI: https://doi.org/10.1525/mp.2017.34.5.​531
Reynolds, D. A. (2009). Gaussian mixture models. Encyclo­
pedia of Biometrics, 741: 659–663. DOI: https://doi.
org/10.1007/978-0-387-73003-5_196
Rosen, C. (1988). Sonata Forms. Norton.
Sapp, C. S. (2001). Harmonic visualizations of tonal
music. In International Computer Music Conference,
pages 419–422.
Sapp, C. S. (2005). Visual hierarchical key analysis.
Computers in Entertainment (CIE), 3(4): 1–19. DOI:
https://doi.org/10.1145/1095534.1095544
Sapp, C. S. (2011). Computational Methods for the Analysis
of Musical Structure. PhD thesis, Stanford University,
Department of Music.
Schoenberg, A. (1967). Fundamentals of Musical
Composition. Faber & Faber London.
Schreiber, H., Weiss, C., and Müller, M. (2020). Local key
estimation in classical music recordings: A cross-version
study on Schubert’s Winterreise. In IEEE International
Conference on Acoustics, Speech and Signal Processing
(ICASSP), pages 501–505. IEEE. DOI: https://doi.
org/10.1109/ICASSP40776.2020.9054642
Sears, D., Caplin, W. E., and McAdams, S. (2012).
Perceiving the classical cadence. Music Perception: An
Interdisciplinary Journal, 31(5): 397–417. DOI: https://
doi.org/10.1525/mp.2014.31.5.397
Shan, M.-K., and Kuo, F.-F. (2003). Music style mining
and classification by melody. IEICE Transactions on
Information and Systems, 86(3): 655–659.
Shibata, G., Nishikimi, R., and Yoshii, K. (2020). Music
structure analysis based on an LSTM-HSMM hybrid
model. In International Society for Music Information
Retrieval Conference, pages 15–22.
Shmulevich, I., and Yli-Harja, O. (2000). Localized key
find­ing: Algorithms and applications. Music Perception,
17(4): 531–544. DOI: https://doi.org/10.2307/4028​
5832
Smith, A. (1973). Feasibility of tracking musical form as
a cognitive listening objective. Journal of Research in
Music Education, 21(3): 200–213. DOI: https://doi.
org/10.2307/3345090
Temperley, D. (1999). What’s key for key? The KrumhanslSchmuckler key-finding algorithm reconsidered. Music
Perception, 17(1): 65–100. DOI: https://doi.org/10.​
2307/40285812
Tzanetakis, G., and Cook, P. (2002). Musical genre
classification of audio signals. IEEE Transactions on
Speech and Audio Processing, 10(5): 293–302. DOI:
https://doi.org/10.1109/TSA.2002.800560
Tzanetakis, G., Ermolinskyi, A., and Cook, P. (2003). Pitch
histograms in audio and symbolic music information
retrieval. Journal of New Music Research, 32(2): 143–152.
DOI: https://doi.org/10.1076/jnmr.32.2.143.16743
van Kranenburg, P. (2006). Composer attribution by
quantifying compositional strategies. In International
Conference on Music Information Retrieval (ISMIR),
pages 375–376.
Vapnik, V. (1998). Statistical Learning Theory. Wiley.
Weiß, C., Klauk, S., Gotham, M., Müller, M., and Kleinertz,
R. (2020). Discourse not dualism: An interdisciplinary
dialogue on sonata form in Beethoven’s early piano
sonatas. In International Society for Music Information
Retrieval Conference, pages 199–206.
Zhu, Y., and Kankanhalli, M. S. (2006). Precise pitch
profile feature extraction from musical audio for
key detection. IEEE Transactions on Multimedia, 8(3):
575–584. DOI: https://doi.org/10.1109/TMM.2006.​
870727
Chawin and Rom: Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical Form
235
How to cite this article: Chawin, D., & Rom, U. B. (2021). Sliding-Window Pitch-Class Histograms as a Means of Modeling Musical
Form. Transactions of the International Society for Music Information Retrieval, 4(1), pp. 223–235. DOI: https://doi.org/10.5334/
tismir.83
Submitted: 28 November 2020
Accepted: 07 October 2021
Published: 03 December 2021
Copyright: © 2021 The Author(s). This is an open-access article distributed under the terms of the Creative Commons
Attribution 4.0 International License (CC-BY 4.0), which permits unrestricted use, distribution, and reproduction in any medium,
provided the original author and source are credited. See http://creativecommons.org/licenses/by/4.0/.
Transactions of the International Society for Music Information Retrieval is a peer-reviewed
open access journal published by Ubiquity Press.
OPEN ACCESS
